Executive Summary: Australian Sliding Security Door Lock Integration
- Tri-Layer Structural Design: Extruded aluminum handle faceplates combined with a die-cast zinc alloy mortise body and 304 stainless fasteners.
- Verified Durability: Withstands 96+ hours of neutral salt spray testing (ASTM B117) and over 100,000 mechanical cycles.
- B2B Logistics Flexibility: Minimum order quantity starting at 500 pcs/SKU with standard shipment ready in 7 to 14 days.
1. Australian Sliding Security Door Lock Overview for B2B Buyers
The australian sliding security door lock HC-63-SDL is specifically engineered to meet the demanding structural requirements of modern residential aluminum screen doors. Manufactured by Zhongshan Huachuang Hardware Products Co., Ltd., this complete locking assembly delivers superior latching strength and forced-entry protection across 100% of standard extrusion profiles. Specifically, B2B importers and door fabricators rely on this model to maintain structural alignment under heavy daily cycling.
In addition, door hardware distributors require locking mechanisms that seamlessly blend surface-mounted ergonomics with concealed mortise protection. Furthermore, you can review our full range of door hardware solutions on the Huachuang product catalog. Consequently, incorporating the HC-63-SDL australian sliding security door lock into your product line significantly reduces warranty claims caused by latch misalignment or coastal corrosion.
2. Technical Specifications & Material Matrix
To evaluate the structural integrity of the australian sliding security door lock HC-63-SDL, hardware procurement managers can review the comprehensive engineering parameter matrix below. Specifically, every component is manufactured to strict dimensional tolerances on LT-40 CNC lathes to guarantee smooth operation across 10,000+ installation cycles.
| Parameter | HC-63-SDL Reference Specification | Why It Matters for B2B Sourcing |
|---|---|---|
| Handle Faceplate Material | Extruded Aluminum Alloy (Black Finish) | Provides lightweight structural strength and eliminates surface bending under lever force. |
| Mortise Lock Casing | Precision Die-Cast Zinc Alloy | Encapsulates internal linkages securely within narrow 20mm aluminum stile cavities. |
| Internal Linkages | High-Tensile Zinc Alloy | Ensures consistent mechanical lever action across 100,000+ opening and closing cycles. |
| Fastener Hardware | 304 Stainless Steel Screws | Prevents galvanic corrosion and thread stripping in coastal high-humidity environments. |
| Corrosion Resistance | 96+ Hours Neutral Salt Spray (ASTM B117) | Exceeds standard residential hardware requirements for coastal installation projects. |
| Minimum Order Quantity | 500 pcs / SKU (Standard Stock) | Allows distributors to manage inventory buffer stock with 7 to 14 days lead time. |
3. Tri-Layer Engineering in the Australian Sliding Security Door Lock

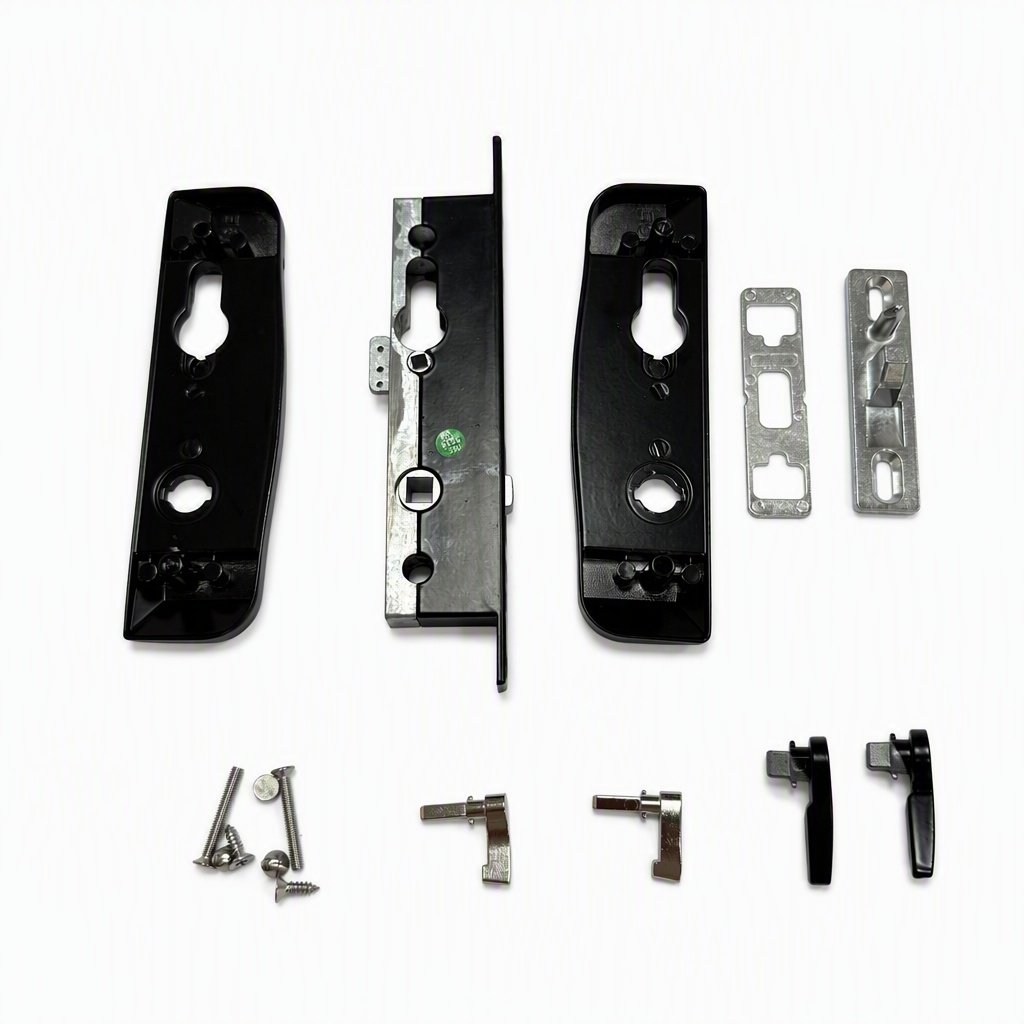

The structural reliability of an australian sliding security door lock depends heavily on its multi-material composition. Specifically, Huachuang engineers utilize extruded aluminum for the exterior and interior handle plates to ensure high rigidity without adding excessive weight. As a result, the handle surface resists deformation even when subjected to 500 N of manual pulls.

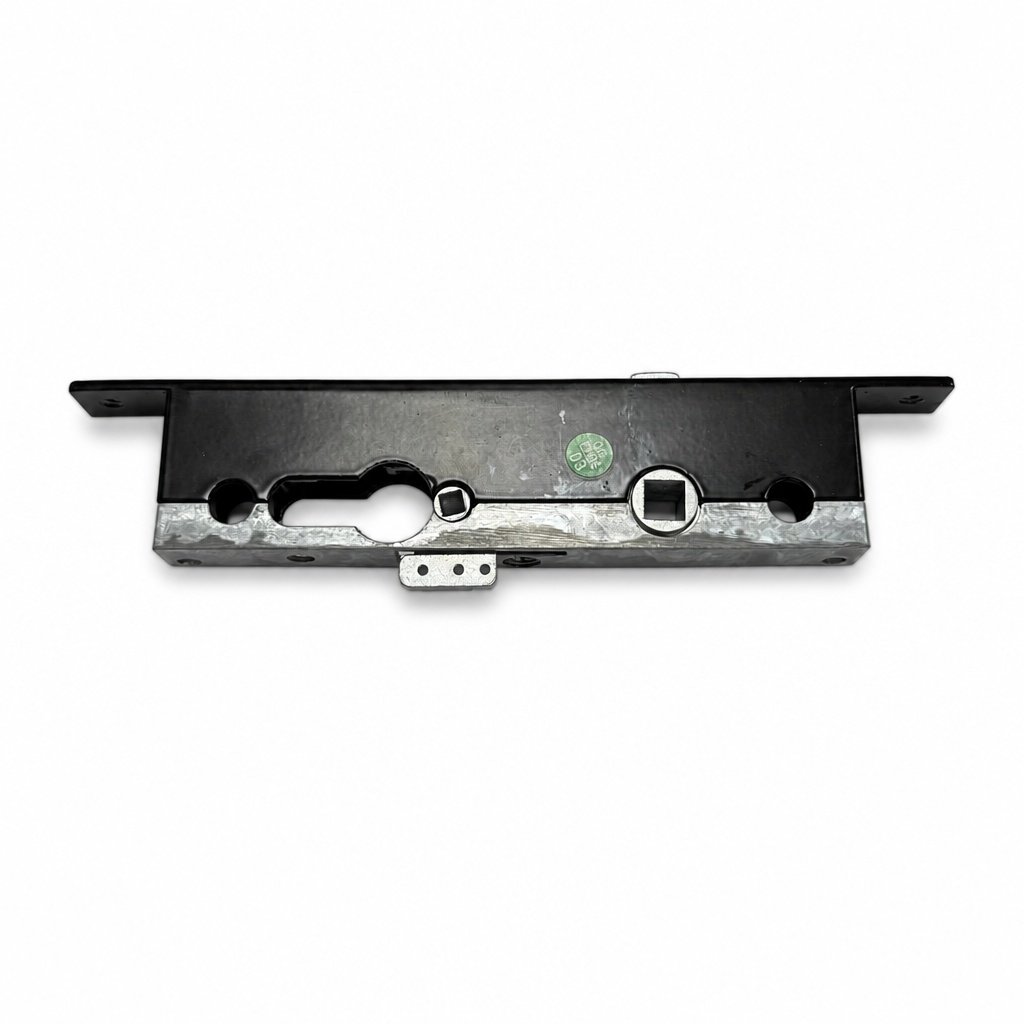

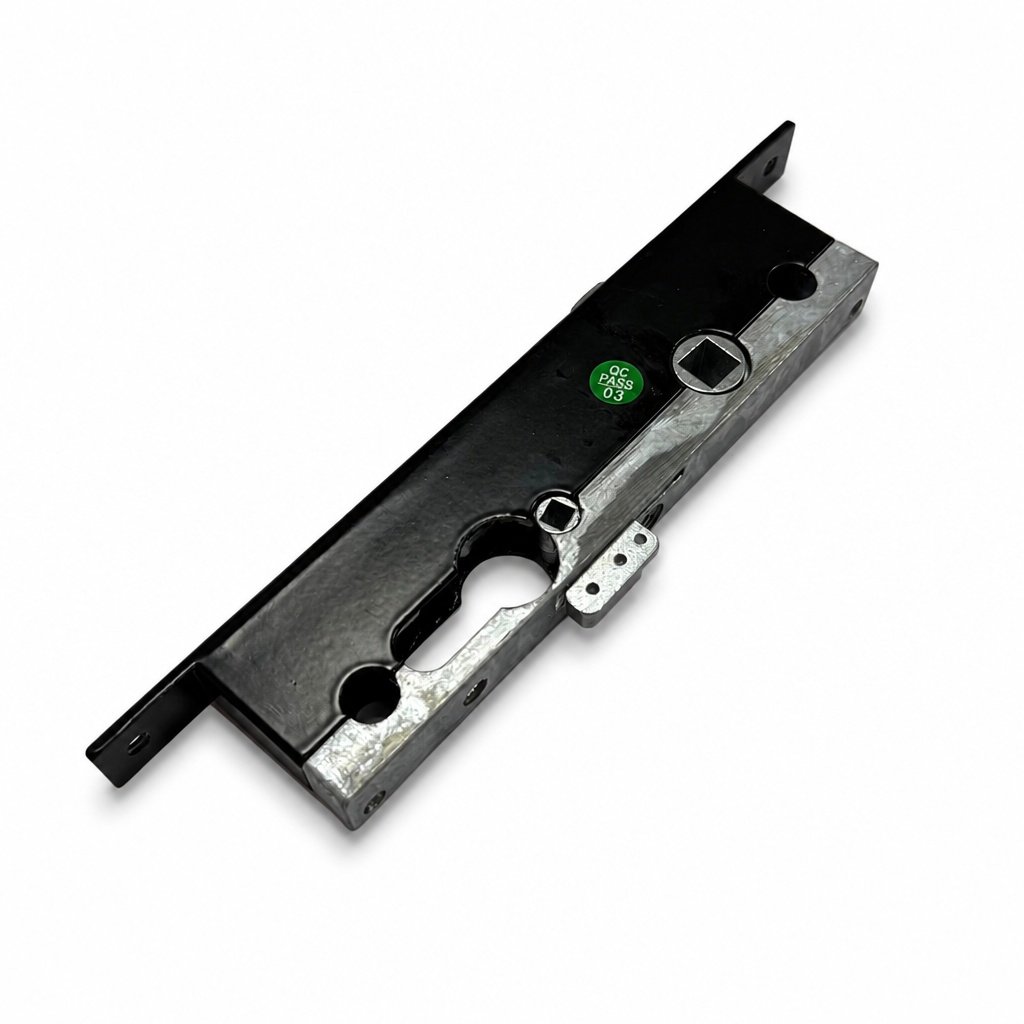

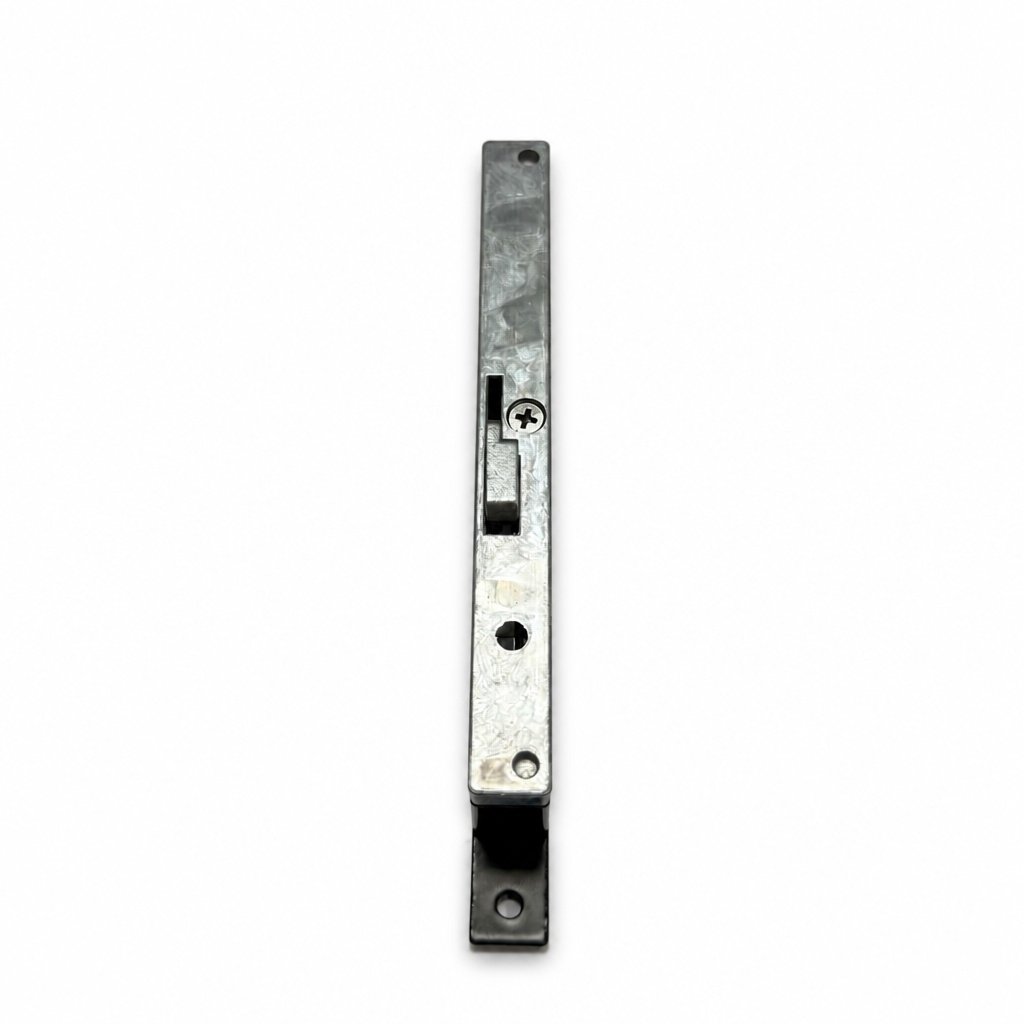

Furthermore, the internal mortise lock body utilizes precision die-cast zinc alloy to house the pivoting latch mechanism. Therefore, the internal gears maintain precise meshing tolerances within ±0.05mm. In contrast to cheaper stamped steel alternatives, this zinc housing completely prevents internal jam issues. You can explore our direct manufacturing workflow on the Huachuang factory tour page.
4. Engineering Quality Standards & Salt Spray Validation
Every batch of the australian sliding security door lock HC-63-SDL undergoes rigorous quality control within our ISO 9001 certified facilities. Specifically, sample units are subjected to neutral salt spray testing according to ASTM B117 standards for 72 to 96+ hours. Consequently, the electrostatically applied black finish demonstrates zero pitting or blistering.
Additionally, our multi-station fatigue testing equipment cycles the lock mechanism continuously over 100,000 times. As a result, this performance aligns with international fenestration requirements established by the Fenestration and Glazing Industry Alliance (FGIA). B2B buyers can review complete certified laboratory documentation on our hardware test reports page.
5. OEM/ODM Customization & Bulk Logistics Sourcing
For large-scale door manufacturers seeking customized hardware, Huachuang provides full OEM and ODM support for the australian sliding security door lock series. Specifically, our in-house tooling center operates over 1,000 sets of die-casting and stamping molds. Therefore, we can modify handle dimensions, keyway profiles, or faceplate finishes within 25 to 35 days from initial drawing approval.
Furthermore, we offer flexible shipping solutions for international importers. Specifically, standard buffer stock SKU orders ship in 7 to 14 days, while full 20-foot container shipments can combine security door locks, rollers, hinges, and handles to optimize freight cost per unit. As a direct source factory, Huachuang eliminates middleman markups to maximize your operating margins.
6. Frequently Asked Questions
What is the minimum order quantity for the HC-63-SDL lock?
Our standard minimum order quantity is 500 pcs per SKU for stock finishes. However, for custom powder coating colors, private brand packaging, or modified faceplates, the MOQ is typically 1,000 pcs depending on tooling specifications.
Is the HC-63-SDL lock suitable for coastal high-salt environments?
Yes, the HC-63-SDL features an extruded aluminum handle set, a die-cast zinc alloy lock body, and 100% 304 stainless steel fasteners. This combination successfully passes 96+ hours of neutral salt spray testing (ASTM B117) without red rust.
Can we mix different door hardware items in a single 20ft container?
Absolutely. Importers frequently combine the australian sliding security door lock HC-63-SDL with our patio door rollers, friction hinges, and window handles in one 20ft container to optimize ocean freight efficiency.
What is the lead time for standard wholesale and OEM orders?
Standard SKU orders ship in 7 to 14 days from our finished goods buffer inventory. Customized OEM orders requiring new mold development or specialized branding take approximately 25 to 35 days after final drawing confirmation.
Request OEM/ODM Quote & Factory Catalog for HC-63-SDL
Contact our engineering team with your required quantities, door profile specifications, and custom packaging needs. We will respond with detailed technical drawings, factory-direct pricing, and sample delivery within 24 hours.
