Hinged Security Door Lock HC-2501-HSD for US Commercial Construction Projects

1. Where a Hinged Security Door Lock Earns Its Place on a Project

Hinged security door lock assemblies appear wherever a swing door must resist forced entry while still opening dozens of times per day: service corridors, plant rooms, stairwells, loading areas and communal entries. Consequently, the specification has to balance anti-pry performance with the cycle life that a busy building actually demands.

Surface-mounted hardware is faster to install, yet it leaves the latch and its fixings exposed to leverage. In contrast, a mortise body concealed inside the door stile protects the mechanism from both tampering and weather, which is why concealed systems are preferred on commercial and multi-family projects. Related hardware families are listed in the Huachuang product catalogue.

2. HC-2501-HSD Kit and Fitment

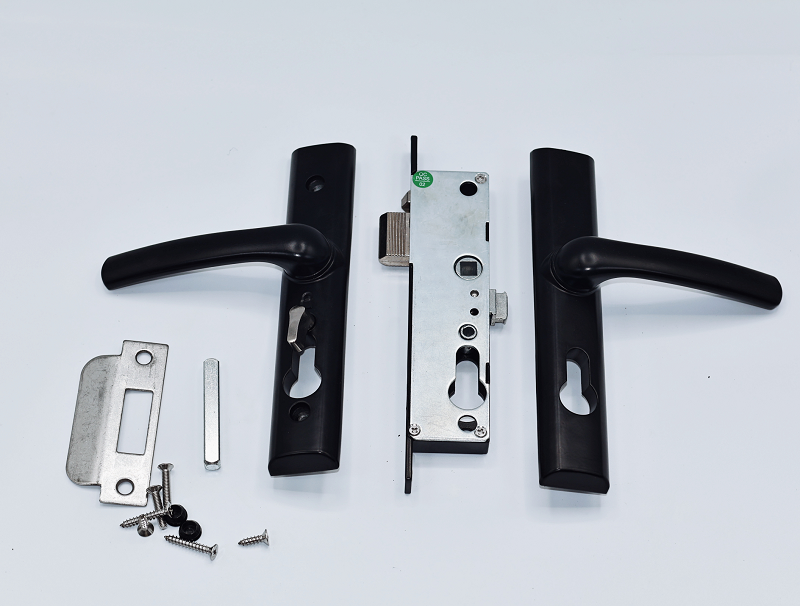

The HC-2501-HSD is configured as a complete hinged security door solution, which removes the compatibility risk of sourcing a body, cylinder and handle from separate suppliers. Specifically, the kit combines a zinc alloy mortise lock body with a black faceplate finish, matching handle set and keyed cylinder. Technical details are published on the HC-2501-HSD product page.

3. Specification Data That Survives Submittal Review

Submittal review fails for missing evidence more often than for poor hardware. Therefore, we publish the underlying test data rather than describing performance in adjectives. Concretely, assemblies are fatigue-validated beyond 100,000 continuous cycles, and coatings are tested for 72 to 96+ hours of neutral salt spray under ASTM B117.

Because finish chemistry affects compliance as well as durability, our electroplating line uses heavy-metal-free trivalent chromium processes documented by SGS RoHS reports, filed in the certified test report library. Structural benchmark language follows published FGIA testing guidance, which keeps US submittals consistent with accepted practice.

4. Door Preparation and Installation Discipline

Installation quality decides whether the lock reaches its rated life, so three checks belong in the method statement. First, verify the mortise pocket depth before the door is hung, because a body that sits 1mm proud prevents the leaf from closing cleanly. Second, confirm backset at 1-1/8 in against the frame condition. Third, check latch engagement of 3mm to 4mm at the strike, since 1mm of lost engagement becomes a call-back on handover day.

Timing also matters on occupied sites. Install hardware after painting and floor protection is removed, and stage components by door number rather than by carton, which avoids the mix-ups that appear when a strike plate from one unit is fitted to another. Staging photos and sample references are available in the hardware sample showroom.

5. Delivery Planning by Construction Phase

A hardware order that arrives in one shipment often becomes a storage problem, especially on occupied sites where secure laydown space is limited. Nevertheless, splitting delivery is straightforward when the factory holds buffer inventory. Practically, stock configurations dispatch in 7 to 14 days from our Zhongshan plant, so a 12 to 18 month programme can release hardware in two or three tranches matched to the installation sequence.

Minimum order quantity is 500 pieces per SKU, and mixed loading keeps freight per unit between 0.05 and 0.12 dollars for dense hardware. Additionally, packing lists can be issued by unit or by block so your site team verifies quantities on arrival rather than during installation. Manufacturing capacity and tooling depth are documented on the factory capabilities and tour page.

6. Coating Performance in Coastal and Humid Projects

Salt air and humidity shorten the life of exposed hardware faster than any other site condition. Specifically, a coating rated below 72 hours of neutral salt spray can develop white rust within a single season in coastal zones. Correspondingly, we validate finishes between 72 and 96+ hours and maintain stainless steel options for openings directly exposed to marine air.

For the project file, keep the finish certificate with the door schedule so the warranty position is unambiguous at handover. Because we manufacture the body, faceplate and handle in-house, dimensional and finish consistency is maintained across the full order quantity rather than only across one production batch.

7. Frequently Asked Questions

Q1: Can the hinged lock be keyed alike across a whole building?

Yes. Cylinders can be supplied keyed alike by building or by block, and master-key hierarchies are available with the project’s key schedule.

Q2: What door thickness does the HC-2501-HSD support?

The standard configuration covers 1-3/8 in to 1-3/4 in (35mm to 45mm) doors, with longer tailpieces available for thicker assemblies.

Q3: How long does a project order take?

Stock configurations dispatch in 7 to 14 days. Custom faceplate lengths or bespoke finishes run 25 to 35 days after drawing approval, and phased delivery can be scheduled to match the installation sequence.

Q4: What documentation is provided for submittals?

We provide cycle fatigue data beyond 100,000 openings, ASTM B117 neutral salt spray results of 72 to 96+ hours, SGS RoHS reports and dimensional drawings for each configured SKU.
