Executive Summary: Sliding Patio Door Lock Handle Set Essentials
- Kit Over Loose Parts: A matched sliding patio door lock handle set removes three compatibility risks at once because the escutcheon, mortise body and keeper are produced to one drawing.
- 15-Minute Retrofit: With correct hole spacing and faceplate length, a two-person crew completes the swap in about 15 minutes instead of 60 to 90 minutes for an on-site rebuild.
- Documented Security: Brass cylinders, 45-degree keyway options and coatings tested for 72 to 96+ hours of neutral salt spray under ASTM B117 support both residential and commercial specifications.
1. Why a Complete Sliding Patio Door Lock Handle Set Beats Loose Parts
Sliding patio door lock handle set hardware fails in a predictable sequence: the hook loses 1mm to 2mm of engagement after 50,000 to 80,000 cycles, the handle base loosens, or the cylinder stiffens as internal grease dries out. Consequently, replacing the complete set removes three compatibility risks in a single step. Browse the full mechanism range in the Huachuang architectural product catalogue.
Labour, not hardware, drives the cost of a failed patio door lock. Specifically, on-site installers bill 85 to 150 dollars per hour, so a 90-minute rebuild consumes more than 200 dollars before parts reach the truck. In contrast, a drop-in set matched to the original preparation takes roughly 15 minutes, which is why contractors keep a small range of complete kits on the vehicle.
2. What Ships in the HC-0597DK Sliding Patio Door Lock Handle Set

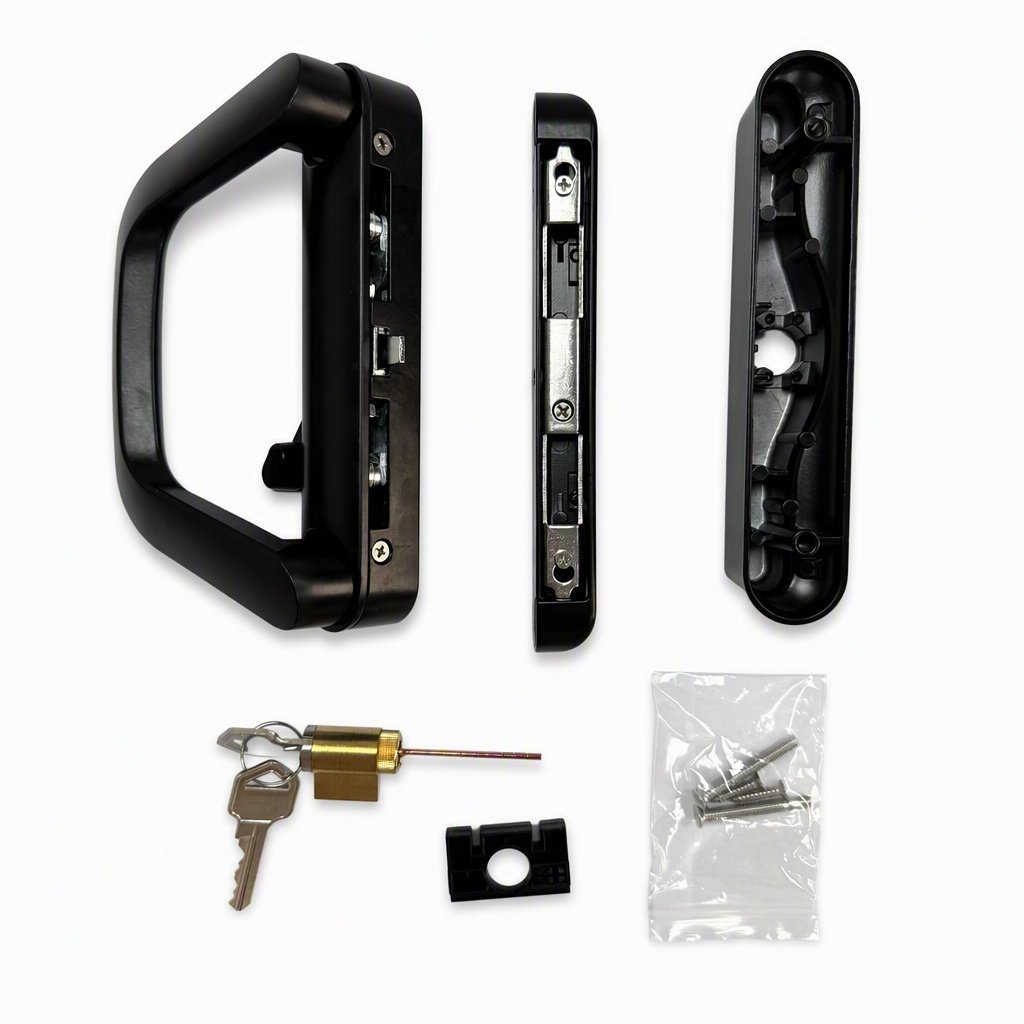

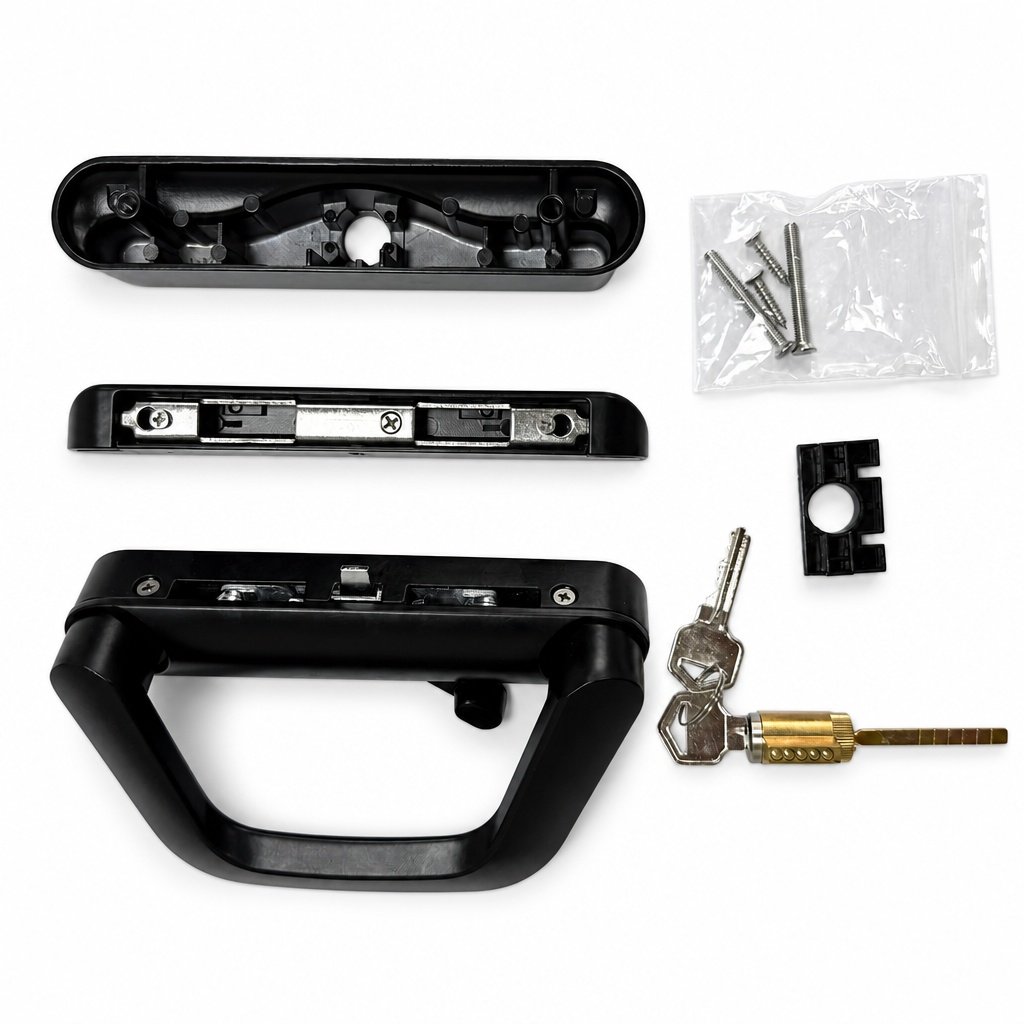

The HC-0597DK is assembled around an aluminium handle plate and a zinc alloy mortise body, with a solid brass cylinder and a stainless steel fixing pack. Technical details, drawings and packing data are published on the HC-0597DK product page. Because every component arrives in one carton, installers do not need to match a body from one supplier with a keeper from another.
| Parameter | HC-0597DK Reference | Why It Matters |
|---|---|---|
| Kit Contents | Handle escutcheon, mortise body, brass cylinder, keeper, fixing pack | One carton covers the whole repair |
| Cylinder | Solid brass, 45 degree keyway, keyed alike on request | Simplifies key control across a development |

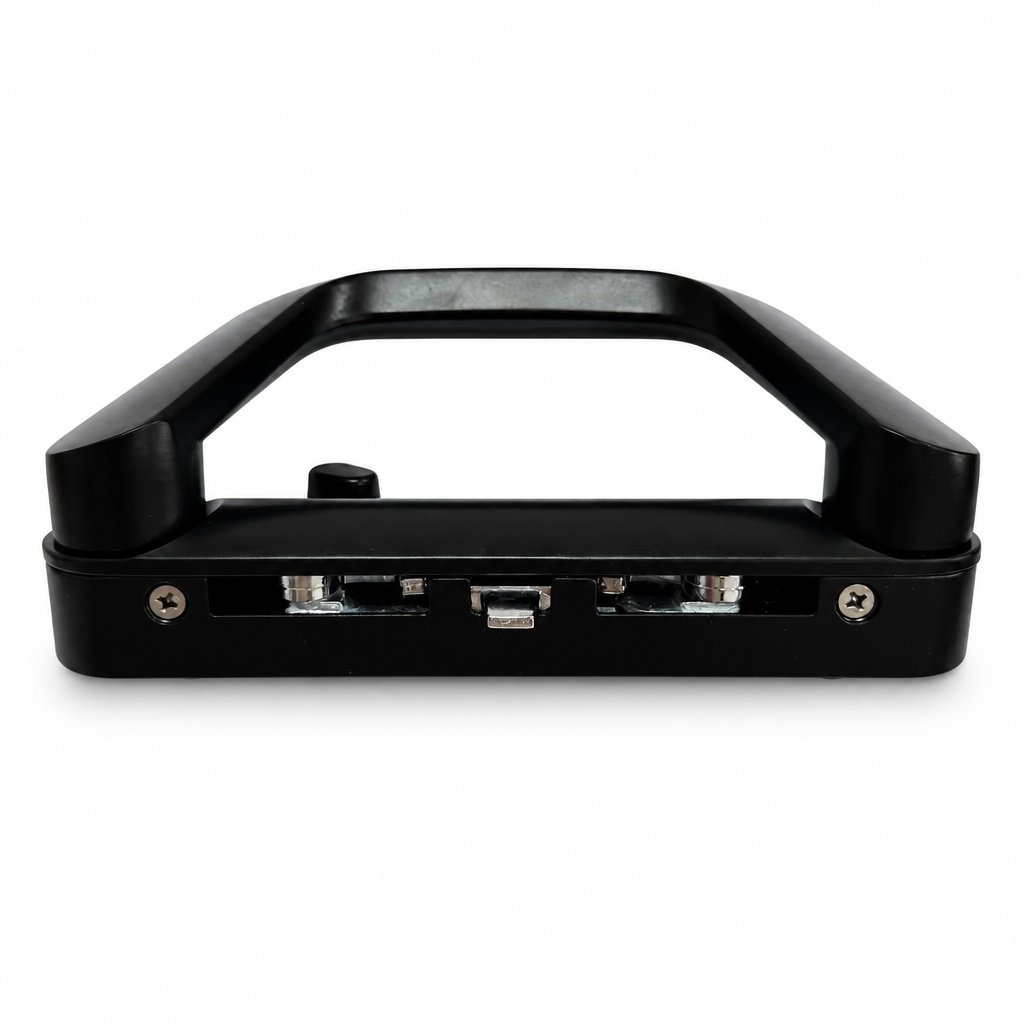

| Handle Plate | Extruded aluminium, black and silver finishes | Matches existing patio door joinery |
| Faceplate | 11/16 in x 9 in reference with round variants | Must sit flush in the milled edge recess |
| Door Thickness | 1-3/8 in to 1-3/4 in (35mm to 45mm) | Sets tailpiece and through-bolt length |
| Corrosion Testing | 72 to 96+ hours neutral salt spray, ASTM B117 | Documentable performance for coastal projects |
3. Measurements That Decide a Sliding Patio Door Lock Handle Set Retrofit
Four values decide whether a replacement set drops in or forces new drilling, and all four can be captured in under five minutes on site:
- Screw hole spacing: 3-9/16 in (90.5mm), 3-11/16 in (93.6mm) and 3-15/16 in (100mm) cover most patio door handle plates.
- Faceplate length: typically 11/16 in x 9 in; a plate that is 2mm long requires filing, which removes the protective coating.
- Backset depth: commonly 1-1/8 in (28.5mm) from the door edge to the keyway centre.
- Hook projection: 36.41mm travel with 0.0mm to 0.50mm micro-adjustment maintains rattle-free compression at the keeper.
Because a 1.5mm deviation on hole centres is enough to void a drop-in installation, we issue a drawing overlay for confirmation on one sample door before the remaining quantity is produced.
4. Brass Cylinder Security and Finish Options
Security starts at the cylinder rather than the handle. Specifically, a solid brass pin-tumbler cylinder with a 45-degree keyway resists picking and drilling far better than die-cast substitutes, and it can be supplied keyed alike per building or keyed to differ for multi-tenant projects. In addition, secondary thumbturn options allow exit without a key where fire egress rules require it.
Finish selection is equally practical. Our plating line uses heavy-metal-free trivalent chromium chemistry and delivers 72 to 96+ hours of neutral salt spray resistance under ASTM B117, with SGS RoHS reports filed in the certified test report library. Structural benchmark language follows published FGIA guidance for US projects.
5. Factory, OEM/ODM Programmes and Order Logistics
Huachuang Hardware manufactures in Zhongshan, Guangdong as a source factory rather than a trading intermediary. Specifically, we operate more than 1,000 proprietary die-casting and stamping molds, LT-40 CNC lathes, progressive die stamping and automated pneumatic assembly under an ISO 9001 quality system. Tooling depth is documented on the factory capabilities and tour page.
For OEM and ODM programmes we support custom handle plate lengths, bespoke finishes, private label cartons and customer part numbering. Additionally, minimum order quantity starts at 500 pieces per SKU, stock configurations dispatch in 7 to 14 days from buffer inventory, and mixed container loading with rollers or hinges keeps freight per unit between 0.05 and 0.12 dollars for dense hardware.
6. Frequently Asked Questions
Q1: Can a sliding patio door lock handle set be fitted without cutting the door?
Yes, provided the screw hole spacing and faceplate length match the existing preparation. In most retrofits the new escutcheon bolts into the original holes and the body slides into the existing milled recess.
Q2: How do I measure hole spacing for a replacement handle set?
Measure centre to centre between the two mounting screws on the existing handle plate and record the faceplate length. Most patio doors fall into the 3-9/16 in, 3-11/16 in or 3-15/16 in pattern.
Q3: Is the cylinder supplied keyed alike?
Cylinders are available keyed alike per building or per block, keyed to differ, or with a master key hierarchy. The same brass cylinder body is used in all three configurations.
Q4: What is the minimum order quantity and lead time?
Standard configurations start at 500 pieces per SKU with 7 to 14 day dispatch from buffer inventory. Custom plate lengths or finishes run 25 to 35 days after drawing approval.
Source Sliding Patio Door Lock Handle Sets Factory-Direct
Send a photo of the existing set with your measured hole spacing, faceplate length and door thickness, and our engineering team will return a cross-reference drawing with OEM or ODM options and a 7 to 14 day dispatch window for stock configurations.
